SPECIFICATIONS

Ambient Temperature: -5℃~50℃

Brand Name: NONE

Certification: NONE

Choice: yes

High-concerned chemical: None

Length of sensor cable: 3M (only for electric 16A type)

Material: Anti-flammable PC

Max current: 16A/3A

Model Number: Floor Heating Thermostat

Origin: Mainland China

Power Consumption: 1.5W Max

Protective Class: IP20

Switching Deviation: 0.5~10°C

Temperature setting range: 5~95℃

Wattage: <1.5W

Functions：

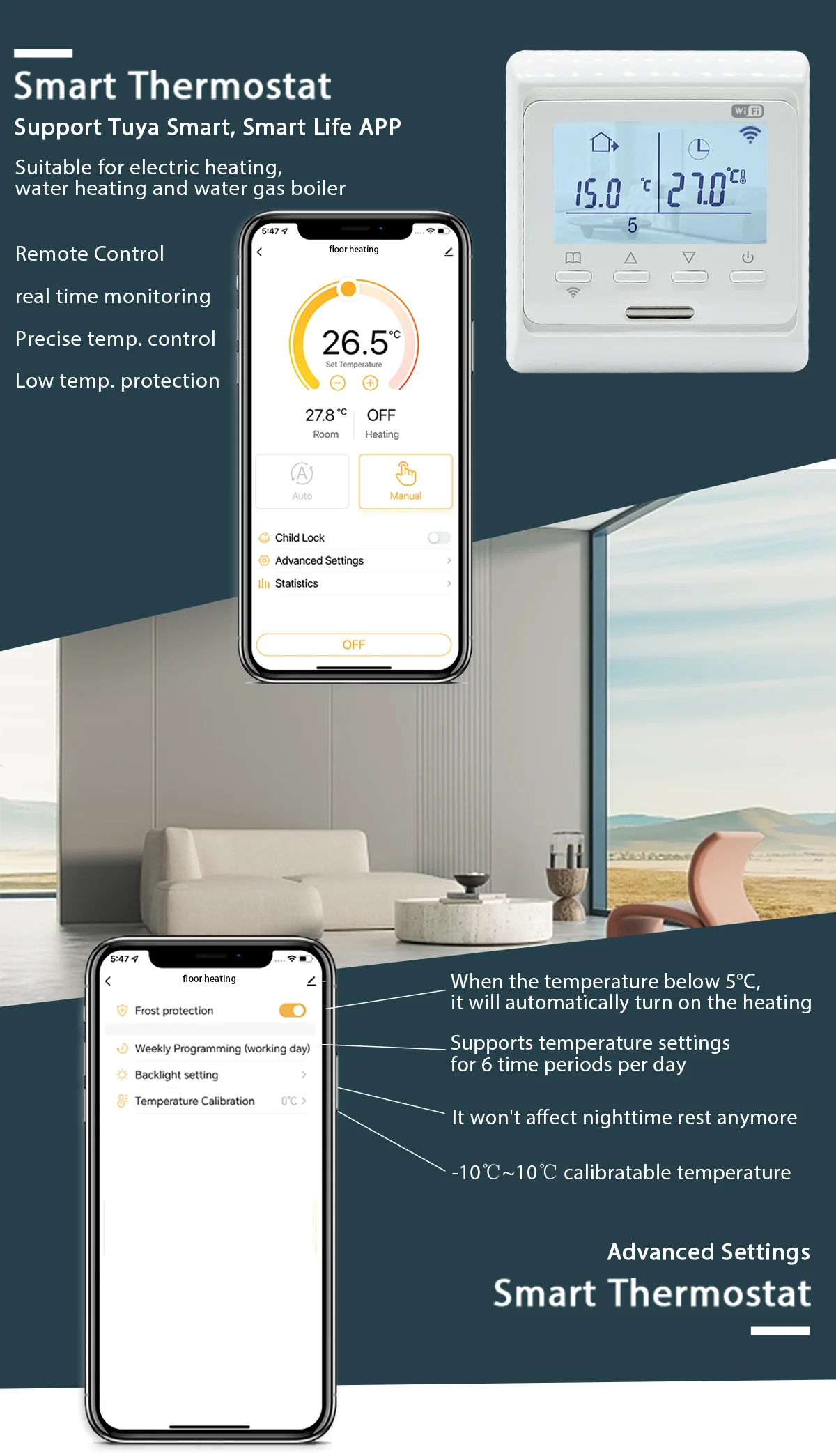

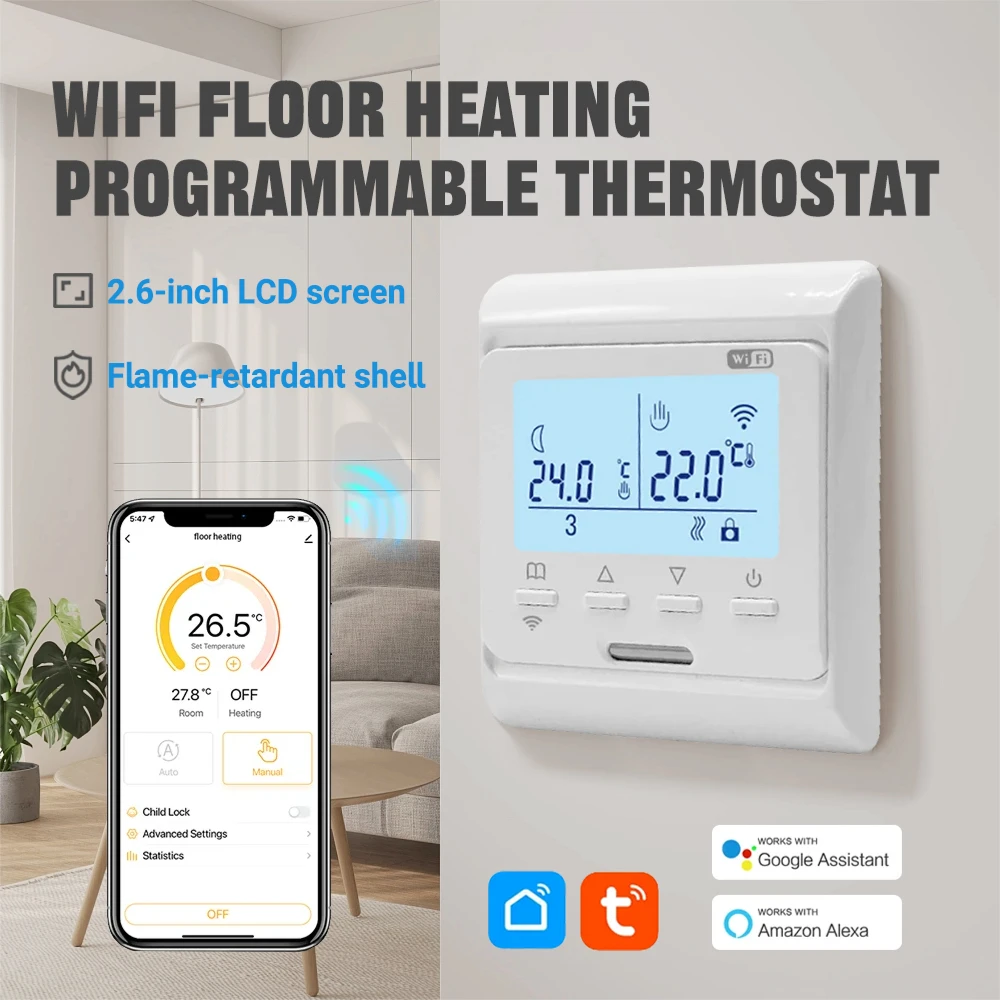

WIFI Function：No matter when and where, it supports remote control through Tuya Smart and Smart Life APP

Three Mode Optional：Manual Mode, Auto Mode and Temporary Mode can be freely selected according to needs (WiFi version)

Voice Control：Support Yandex Alice, Alexa, Google Home voice control(WiFi version)

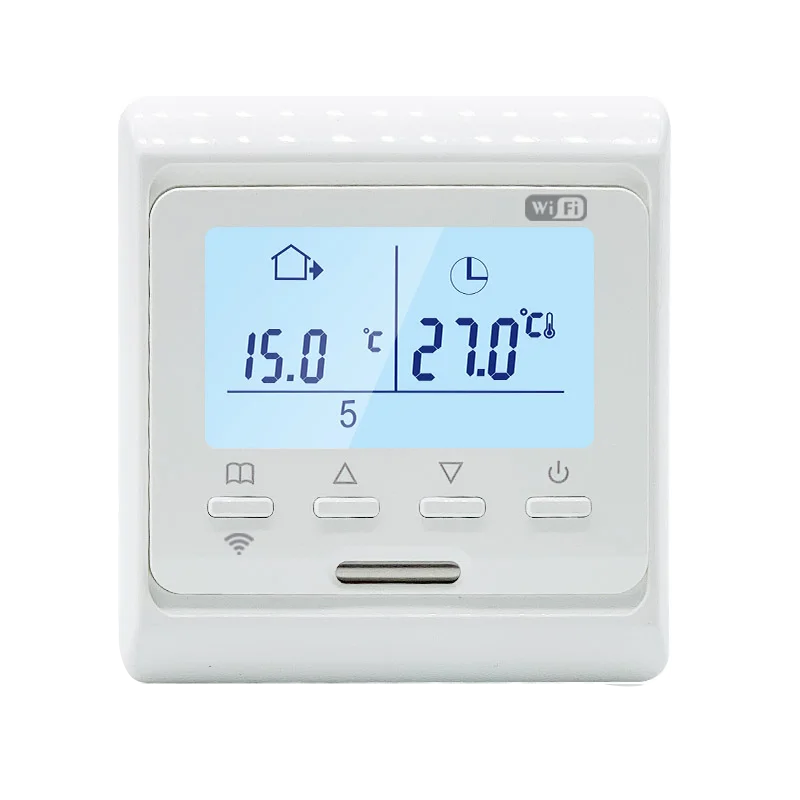

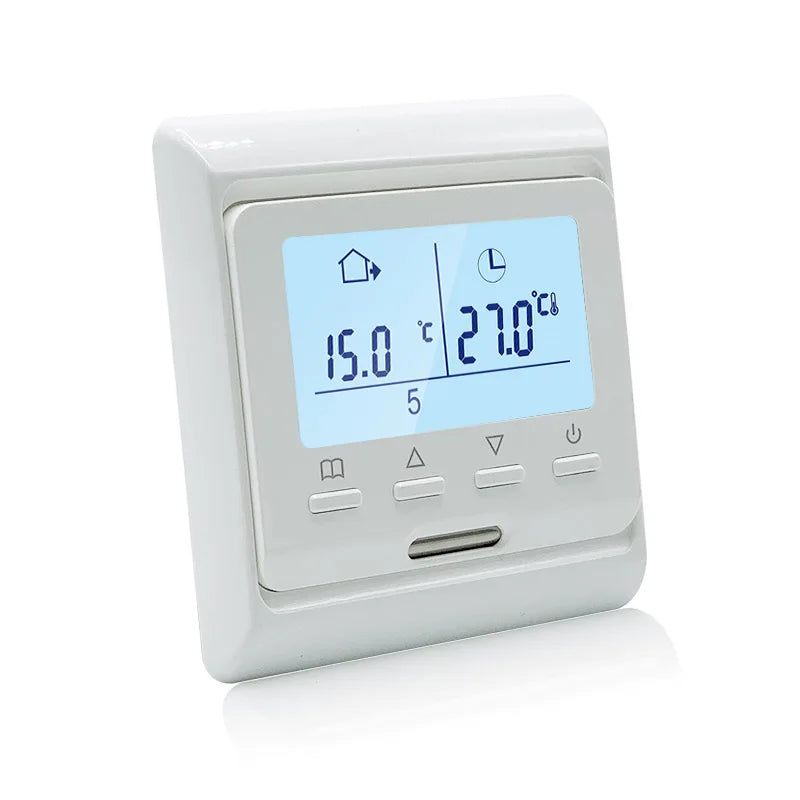

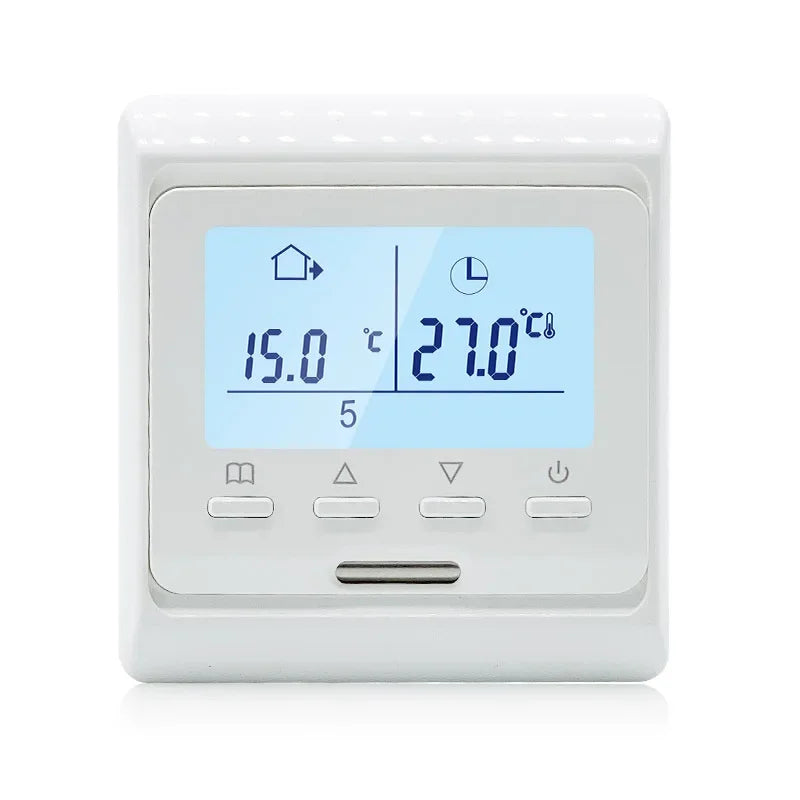

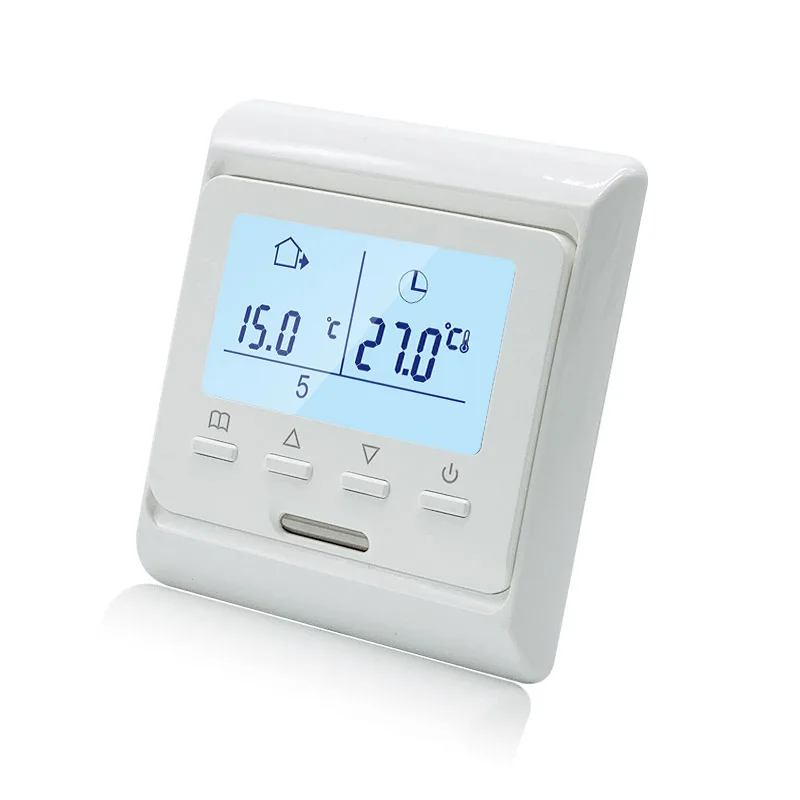

Intuitive Display：LCD dual temperature display, time and temperature rotation display, can be clear and intuitive operation

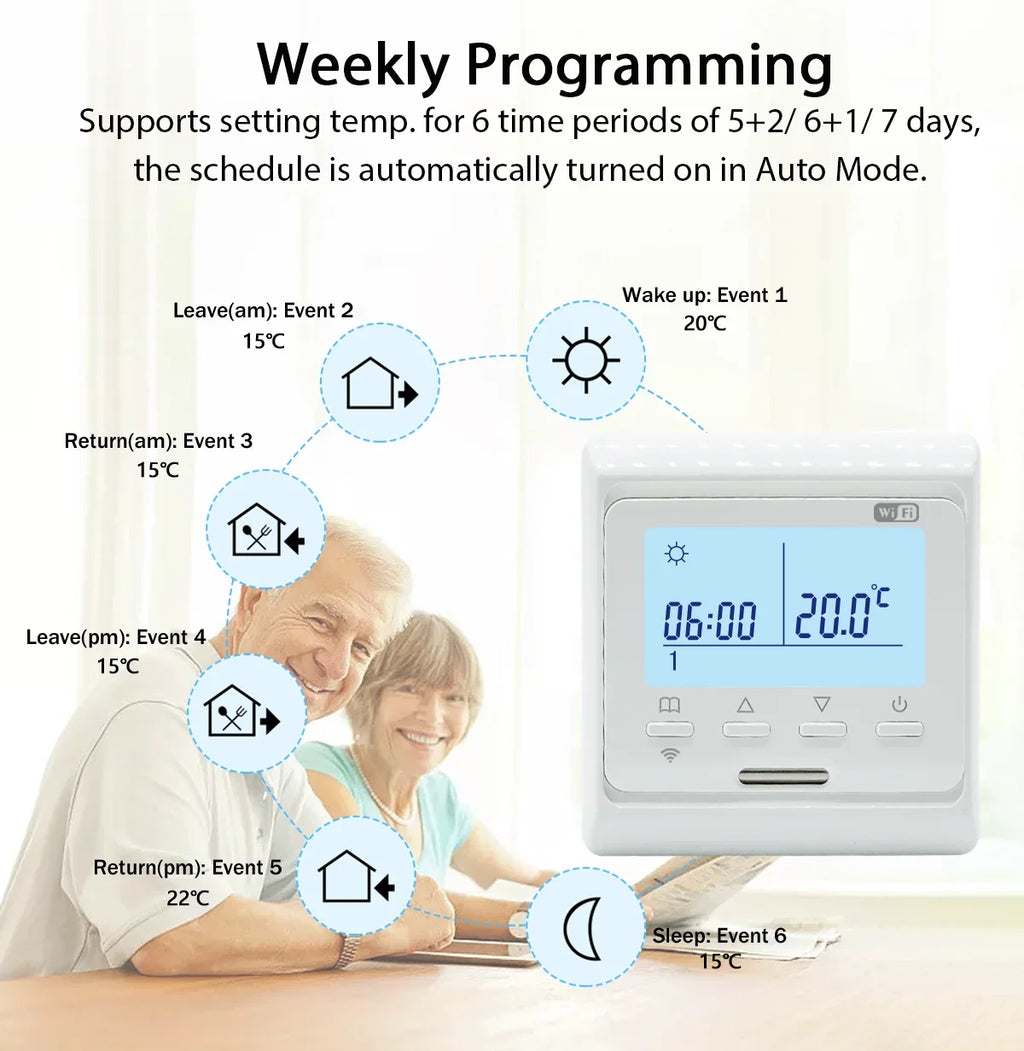

Weekly Programming Function：Support fully automatic or manual setting of temperature for 6 time periods per weekday and rest day

Precise Temperature Control：Comfortable temperature, 0.1℃ display accuracy & 0.5℃ setting temperature accuracy

Memory function：No need to worry about power off, all data will be remembered after power off, no need to reset when power is on again.

Various Thoughtful Functions：Simple operation can open the anti-freeze function, child lock function, group control function, sharing function

Specification：

Voltage: AC230V+10%; 50~60Hz

Power consumption: 5μA (min)

Setting range: 5~95℃

Outer-limit temperature: 20~90℃ (factory 35℃)

Switch deviation: 0.5~10℃ adjustable

Ambient temperature: -5~50°C

Protection class: lP20

Shell material: anti-flammable PC

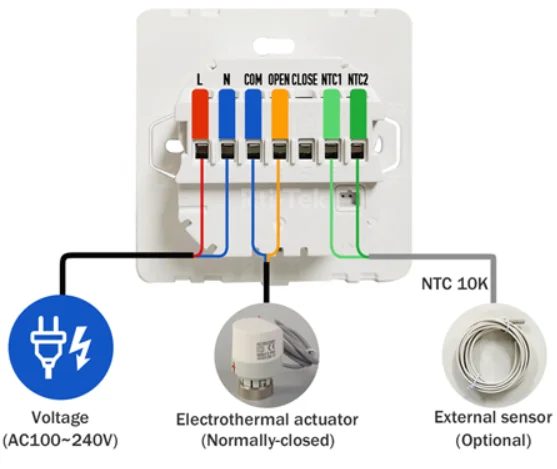

External sensor: lead length 3M (optional)

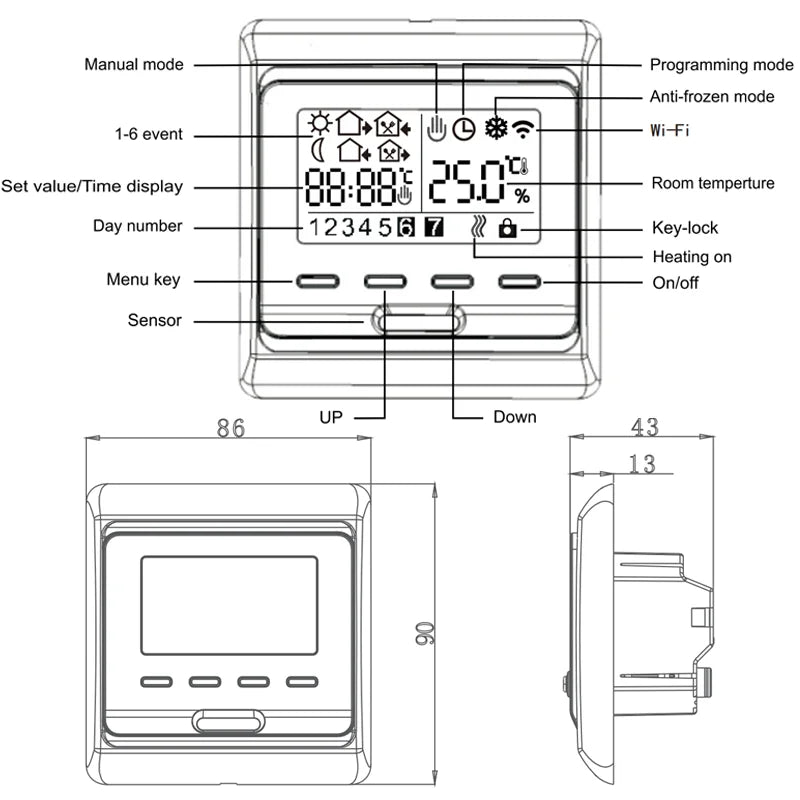

Size (mm): 86*90*43



Packing list：
1 X Thermostat

1 X 3 Meter External Sensor (only include electric floor heating 16A thermostat)

2 X Screws
1 X User Manual

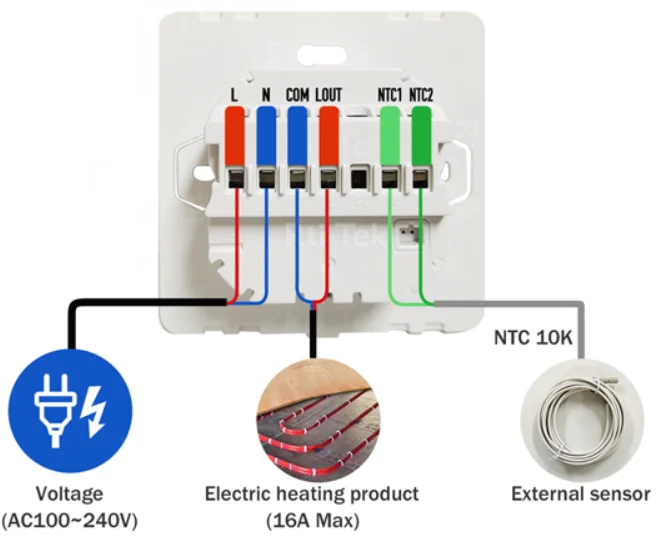

Electric floor heating 16A



Water floor heating 3A

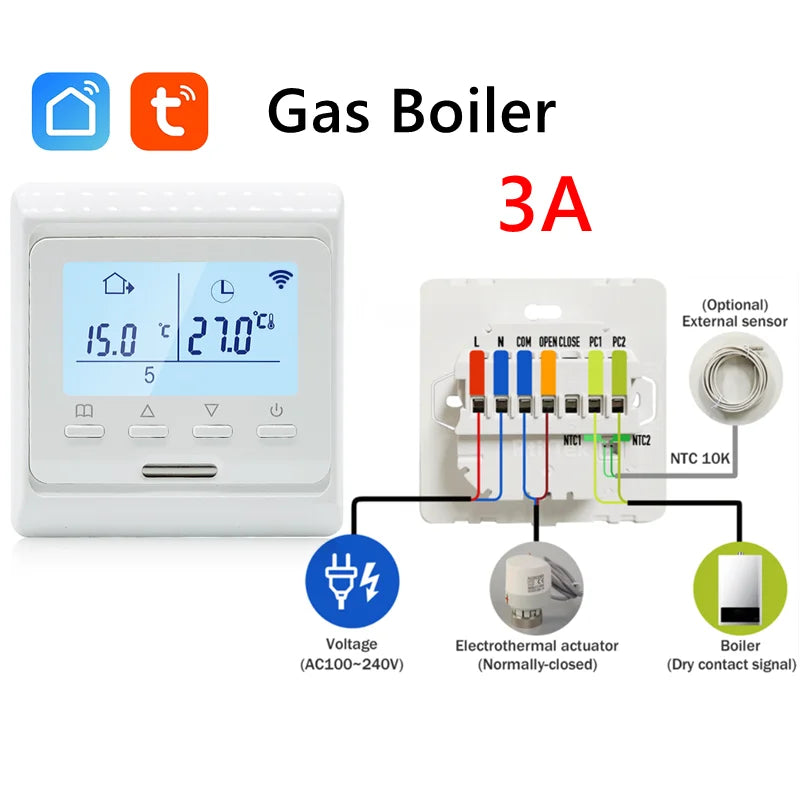

Water gas boiler 3A



WiFi Version(the Case with WIFI laser engraving)

Non-WiFi Version
